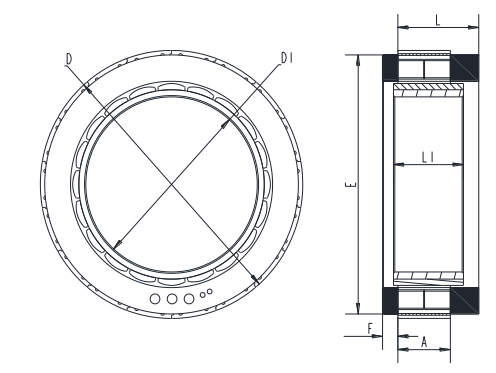

定子外徑D

102mm

±0.043(js9)

定子長度L

23mm

±1

轉子內徑D1

63mm

(+0.027/0)H8

轉子長度L1

18mm

±0.2

灌膠面外圓E

99mm

/

灌膠面高度F

5.5mm

±0.5

定子鐵芯高度A

14mm

/

介電強度

( Dielectric Strength )

1000VAC/1S.2mA

絕緣電阻

 ( Insulation Resistance )

100MΩ, 500VDC

環境溫度

( Ambient Temperature )

-20°C   ~   +50°C

絕緣等級

(Insulation Class)

Class B

黃色  ( Yellow )

UL1332   AWG16

U相 (   Phase U )

紅色  ( Red )

V相 (   Phase V )

黑色  ( Black)

W相 (   Phase W )

極數  ( Number   of poles )

20

相數  ( Number   of phases )

3

額定電壓 ( Rated    voltage )

VDC

48

額定轉矩 ( Rated torque)

N.m

2.5

額定電流(Rated current)

A

15.8

額定速度 ( Rated speed )

RPM

2000

額定功率 ( Rated power )

W

523

最大轉速(Maximum speed)

RPM

3100

峰值轉矩 ( Peak torque )

N.m

7.5

峰值電流 ( Peak current )

A

44.4

線電阻 ( Line to line resistance )

ohms@20℃

0.154

線電感 ( Line to line inductance )

mH

0.54

轉矩常數 ( Torque constant )

Nm/A

0.184

反電勢 ( Back EMF )

Vrms/KRPM

11.1

重量 ( Weight )

g

608

電氣時間常數(Electrical time constant)

ms

3.51
